This product uses advanced semiconductor laser pumping and rare earth gain fiber, combined with a dedicated integrated circuit chip, to achieve high stability, high gain, and low power consumption. The laser is coupled and output through a single-mode fiber, and the method of use is simple. It can be widely used in tests and experiments in the fields of optical communication, fiber laser, and fiber sensing.

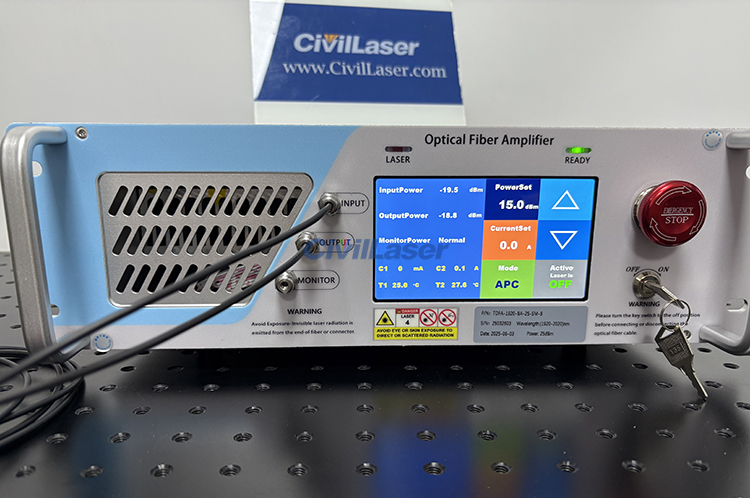

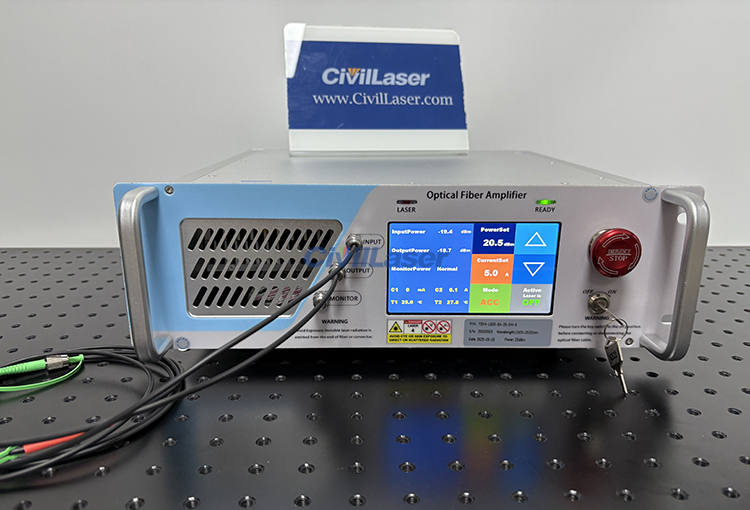

This product is a desktop model with a touch screen on the front. The working mode can be set to ACC / APC.
In ACC (Automatic Pump Current) mode, the working current can be set. In APC (Automatic Power Control) mode, the output power can be set.
At the same time, the current working mode, current working status, working current, output power, temperature and other data are displayed on the screen. Users can also control TDFA through software.
Thulium-doped fiber amplifier (TDFA for short) can be used to amplify 2μ band laser signals in the power range of -10dBm~+10dBm. The saturated output power can reach up to 40dBm, and it is often used to increase the emission power of laser light sources. Desktop TDFA is convenient for experimental operation. Users can set parameters through the front panel. It can also provide more compact modular products to facilitate system integration.

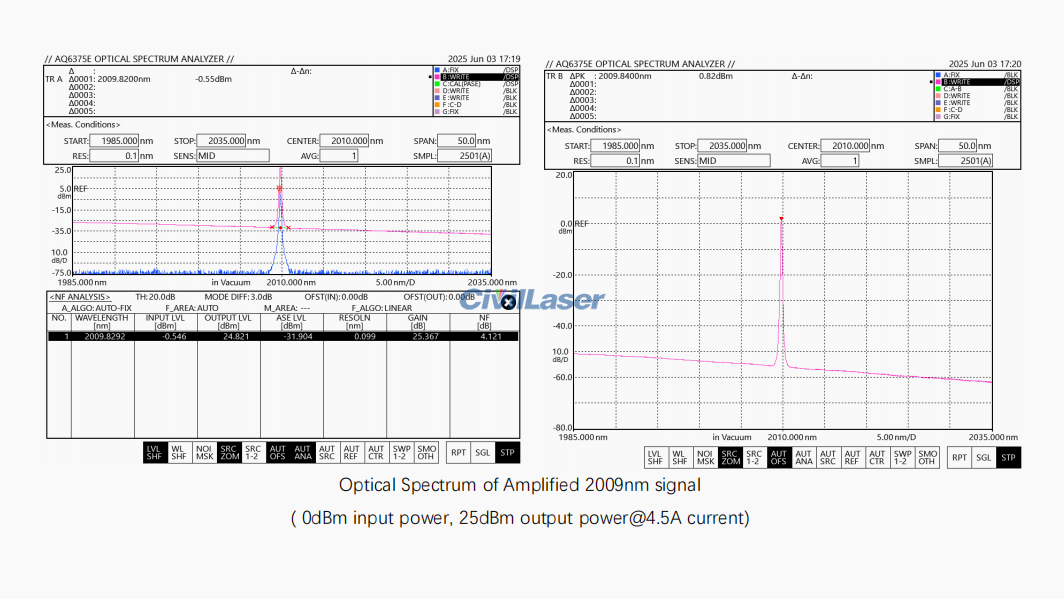

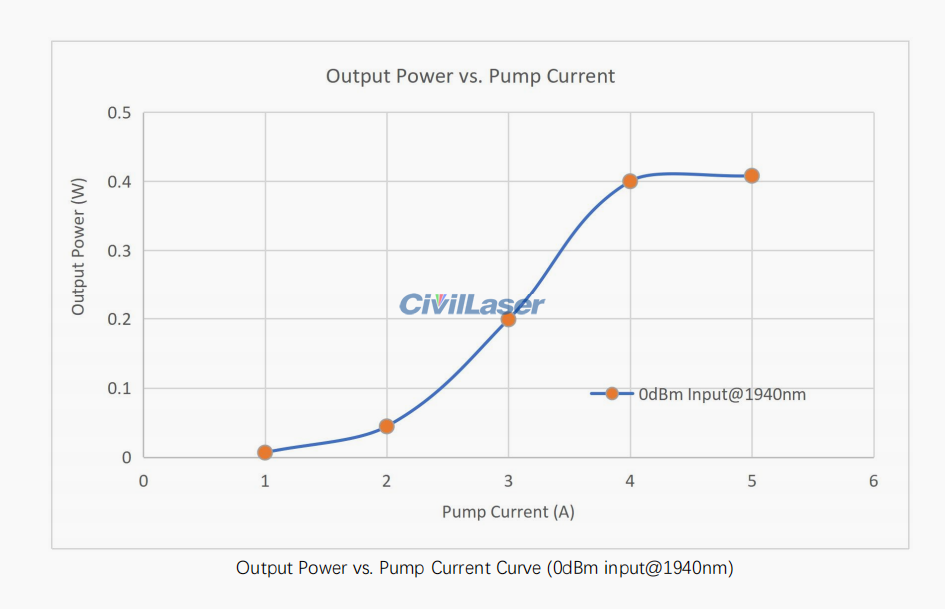

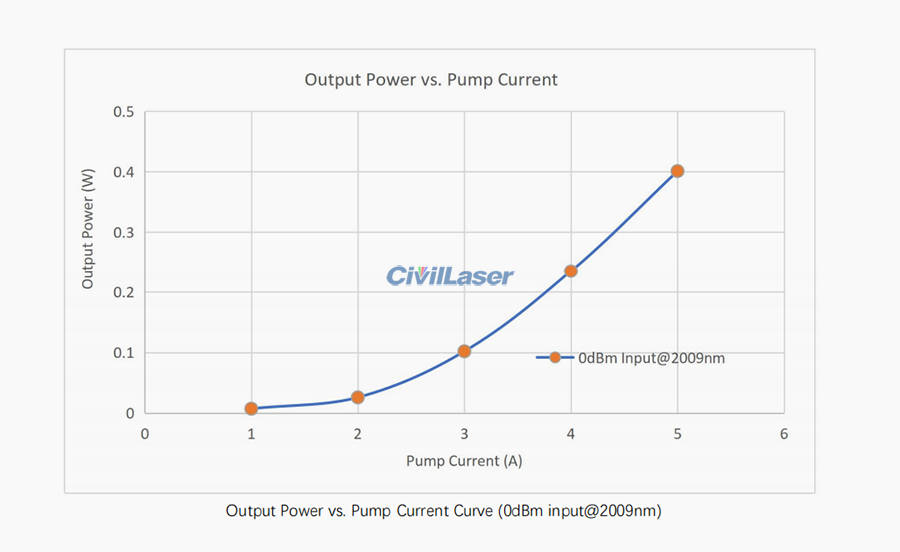

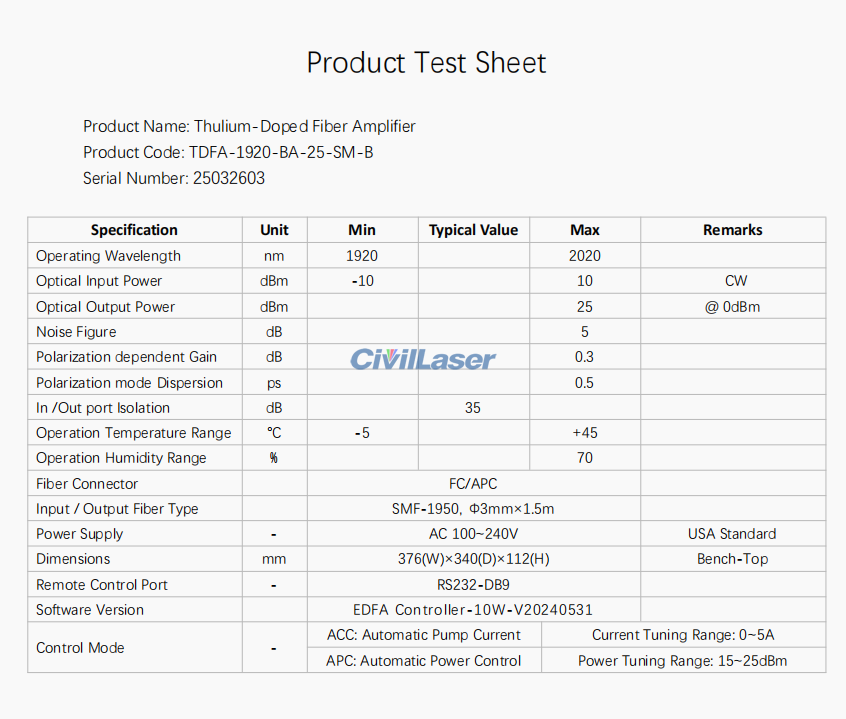

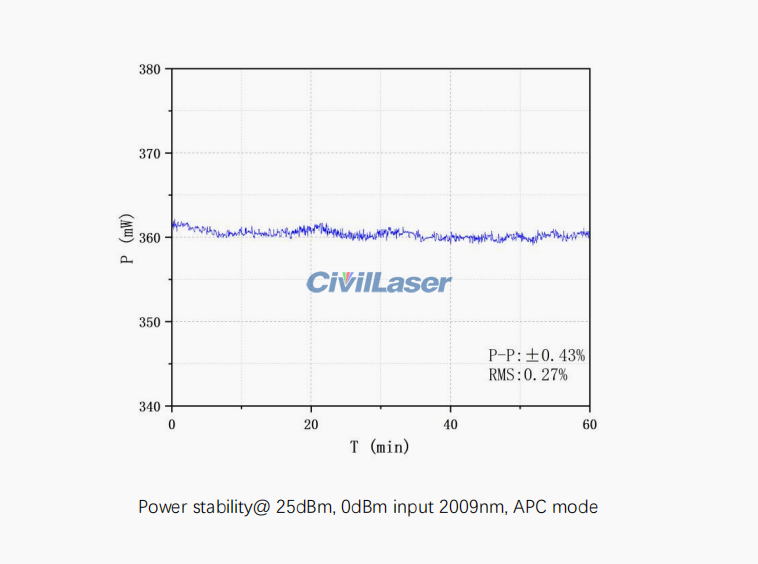

The test report of this 25dBm TDFA.
