The L-band high-power erbium-doped fiber amplifier is based on the principle of stimulated amplification of optical signals in erbium-doped fiber. It adopts efficient single-mode fiber optical amplification design and high-power laser heat dissipation technology to achieve high-power output of 1570~1605nm wavelength laser. It has the advantages of high power and low noise and can be used in fiber optic communication systems, fiber optic sensing, laser radar, etc.

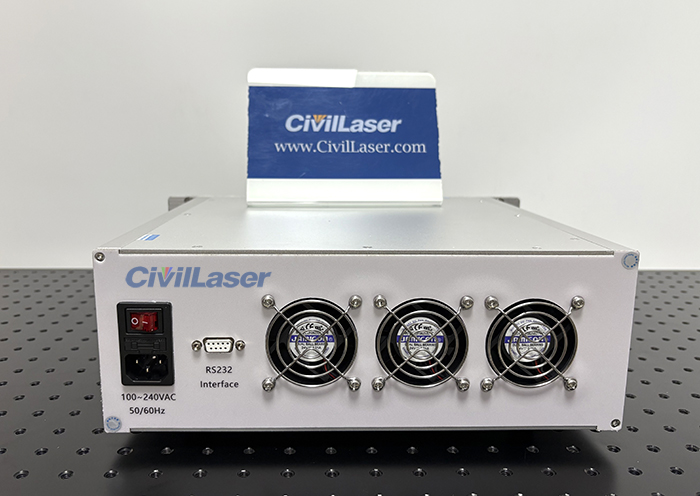

This is a L Band 35dBm erbium-doped fiber amplifier. High power EDFA has built-in cooling fan. This is a L Band 35dBm erbium-doped fiber amplifier. High power EDFA has built-in cooling fan. Here is a desktop type, customizable module fiber amplifier. The output can be adjusted on the screen. Use the up and down arrow buttons on the screen to adjust the power directly. You can also click ‘PowerSet’ or ‘CurrenSet’ and enter your desired power value. The amplifier can also be controlled by software.
Click the ‘Mode’ area to switch the working mode. There are two modes to choose from: ACC and APC. In APC(Automatic Power Control) mode, set the output power. In ACC(Automatic Pump Current) mode, set the operating current.

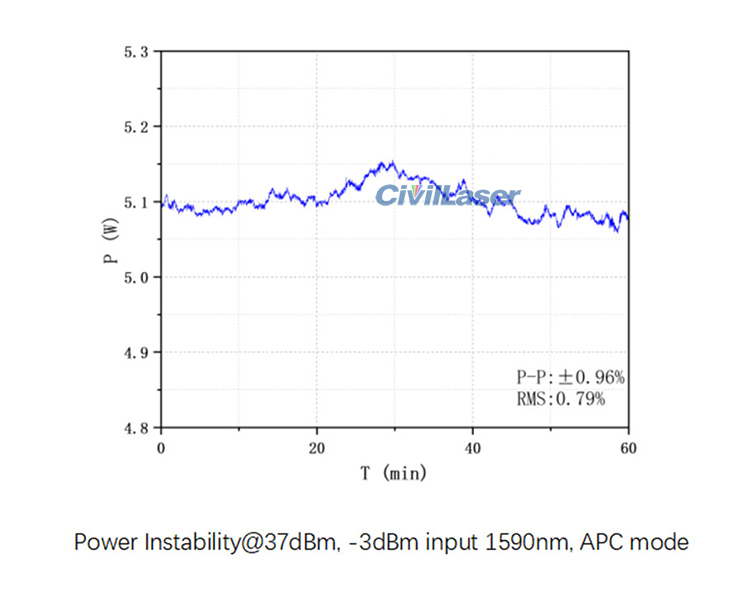

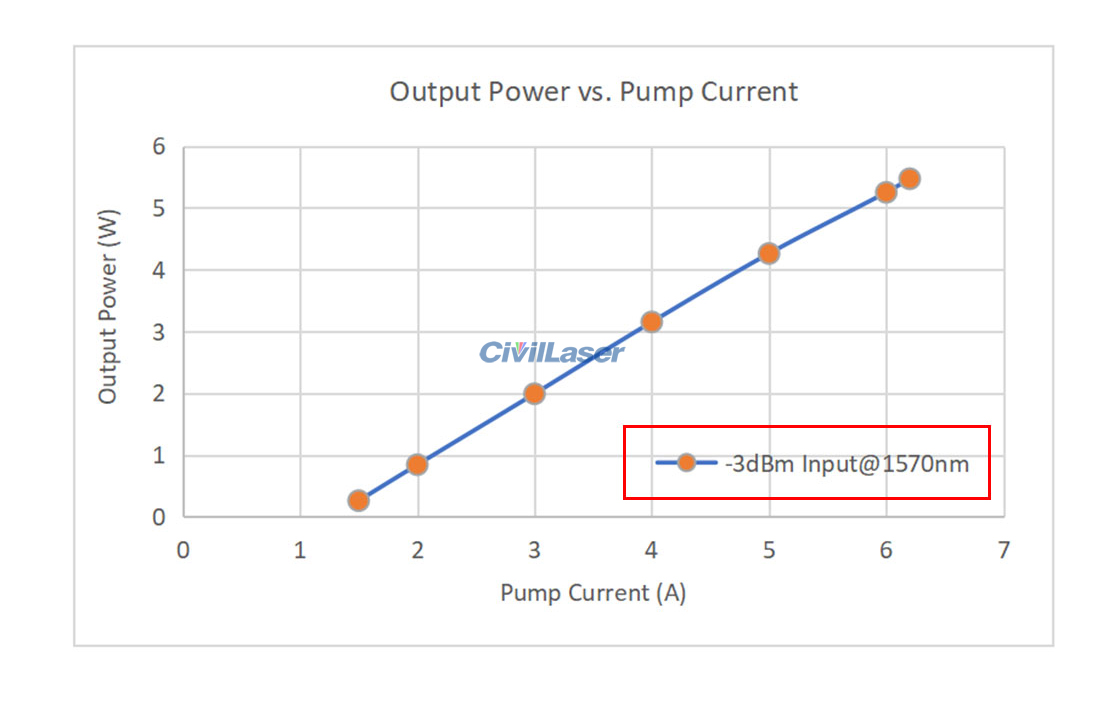

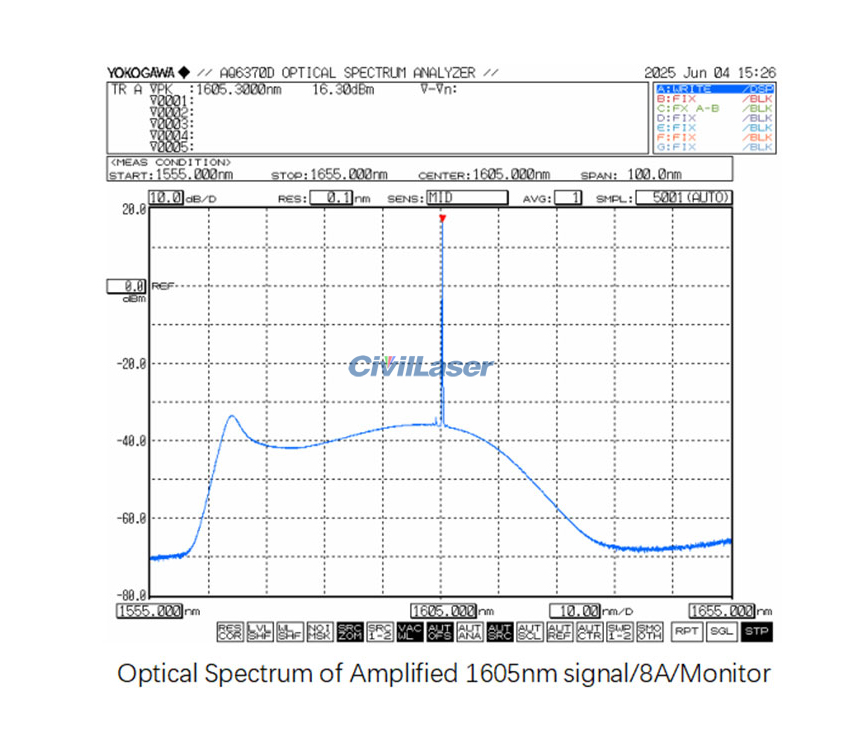

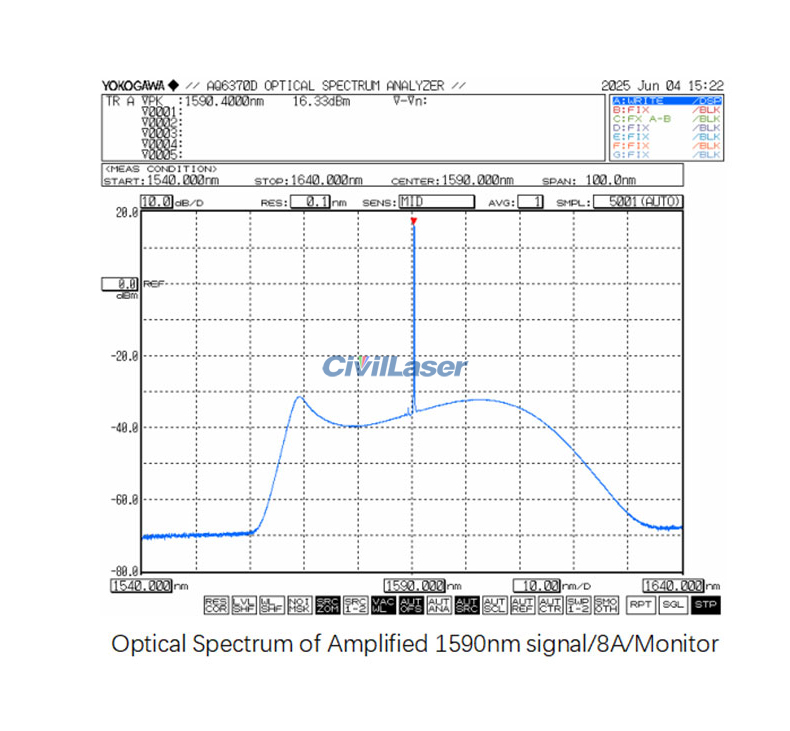

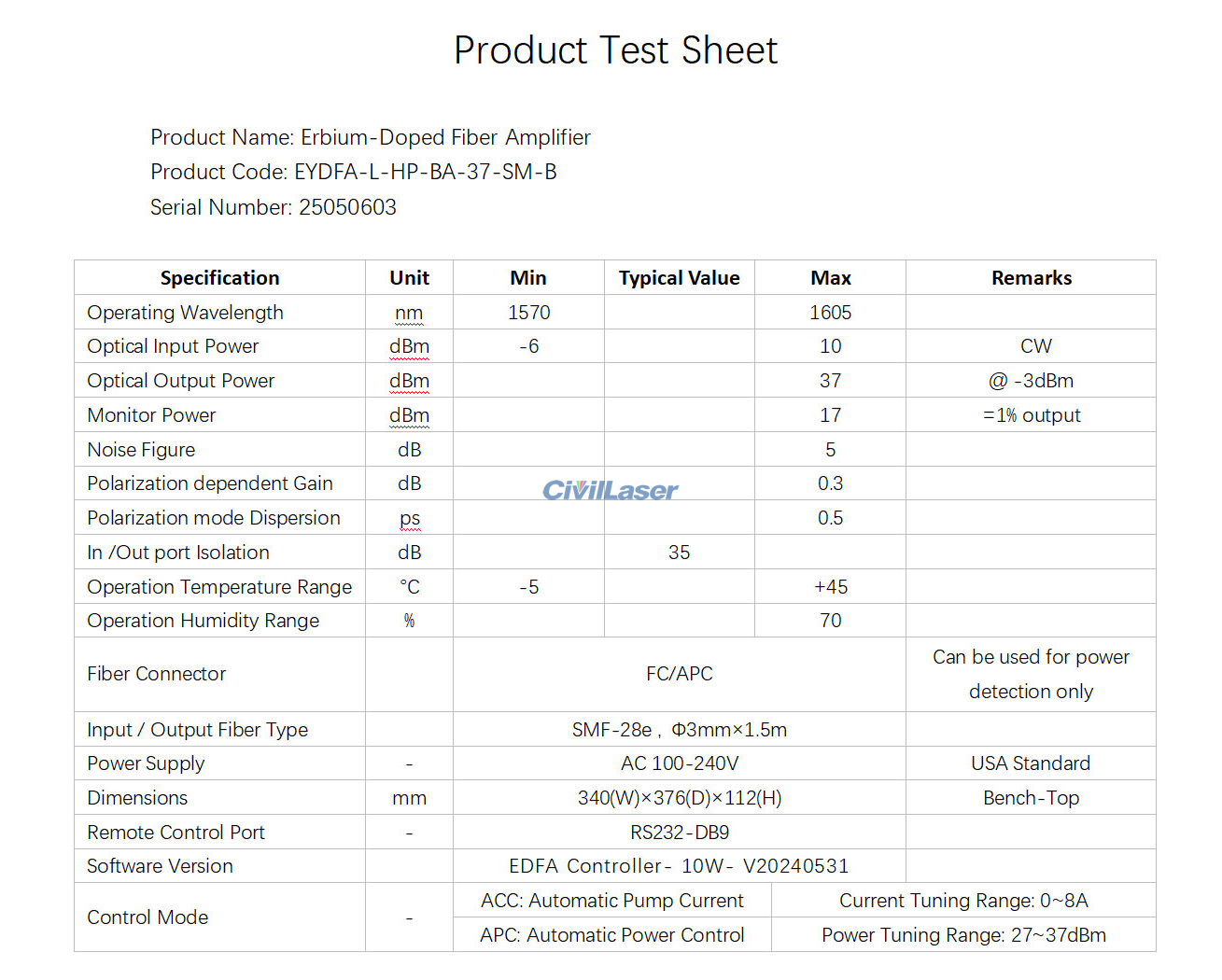

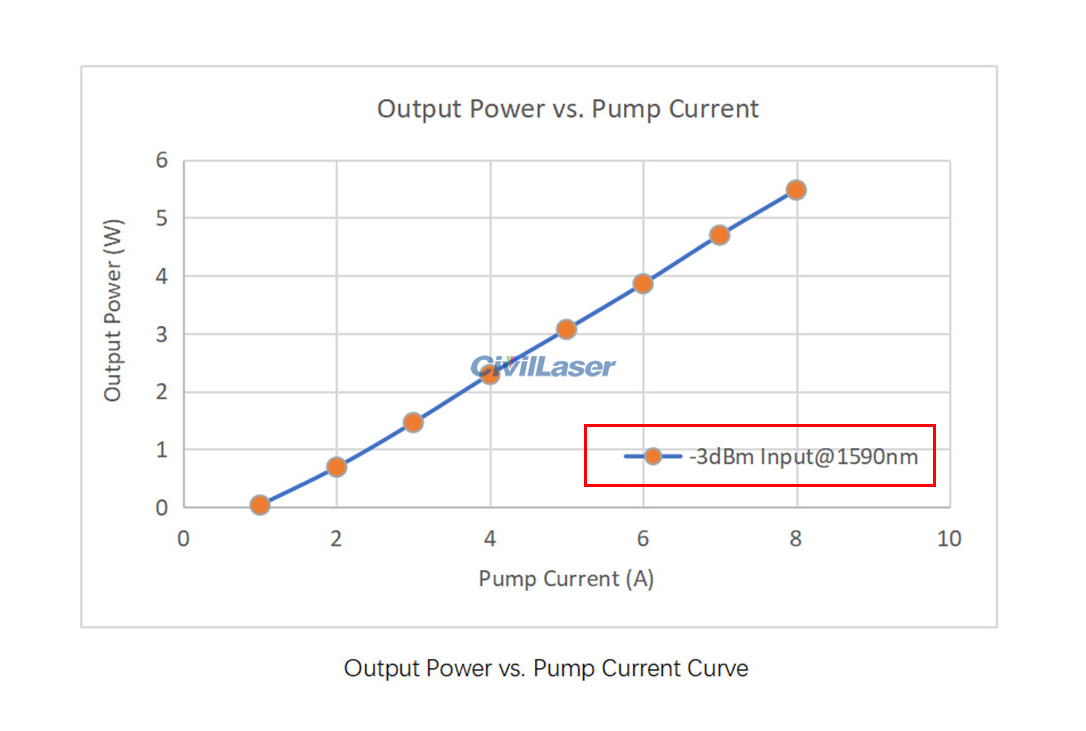

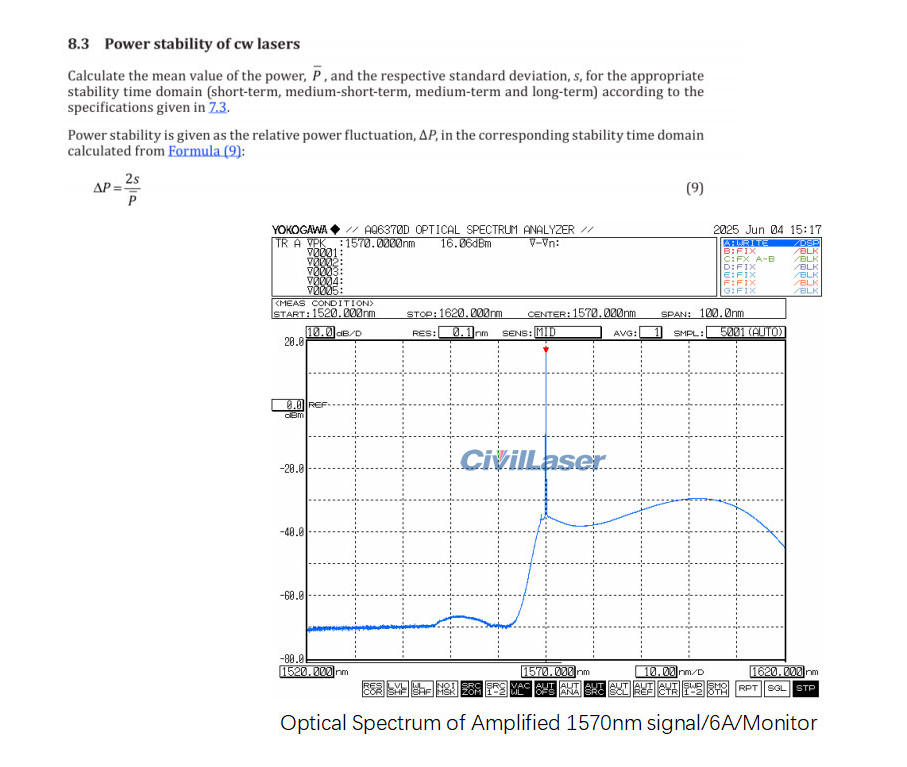

The test report of this 37dBm fiber amplifier.
